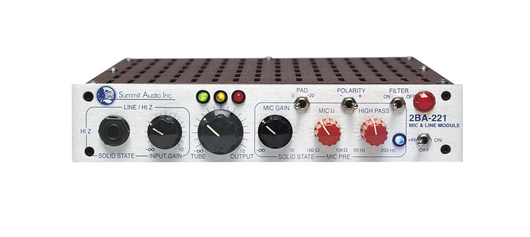

Summit Audio 2BA-221 Mic and Line Preamp

Summit Audio 2BA-221 Mic and Line Preamp

Summit Audio

$1,000.00 $749.99 Sale

2BA-221 Mic and Line Preamp

Publisher: Summit Audio

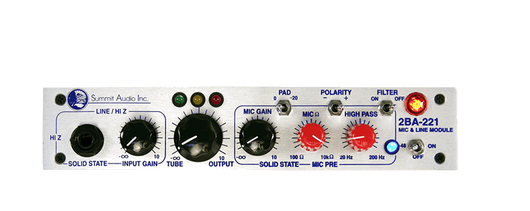

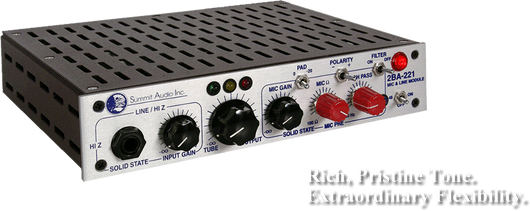

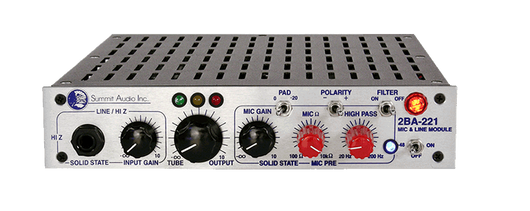

Featuring microphone-level, line-level, and hi-Z instrument inputs, the 2BA-221 continuously variable impedance microphone preamp utilizes separate and individually controlled solid-state input controls to mix the microphone input with the hi-Z or line input into the variable vacuum tube output. Mix them together through the 12AX7A/ECC83 vacuum tube output or seperately through individual solid-state outputs. The 2BA-221 also features a stackable input design; multiple 2BA-221's can be linked together to form a modular mixing device with individual outputs, inserts per channel, and a final vacuum tube gain stage. Its swept highpass filter, multiple simultaneous tube and solid-state outputs, insert jack, and internal power supply make the 2BA-221 a powerful tracking and mixing tool.

    Features:

    • Variable Mic input impedance from 100 ohms to 10K ohms
    • Variable Highpass Filter
    • Hi-Z Instrument, Line, and Mic Level Input
    • Hi-Z input and Mic input available simultaneously with separate gain controls
    • Separate solid state and tube outputs
    • Insert Jack
    • Stackable with more 2BA-221's
    • ½ Rack Size
    • 3 Year Warranty
    • XLR and ¼" outputs and inputs
    • Three variable, independent gain stages

    Specifications:

    Power Configuration

    • Internal AC Supply
    • 20 watts, 115, 50 or 60 Hz (USA model)
    • Fuse size .5 amp, slo-blo for 100/115 V
    • Fuse size .25 amp, slo-blo at 230 V

    Input Impedendance

    • Mic: 1.5K ohms
    • Hi-Z: 10K-1.75M ohms
    • Output impedance (XLR): 150 ohms

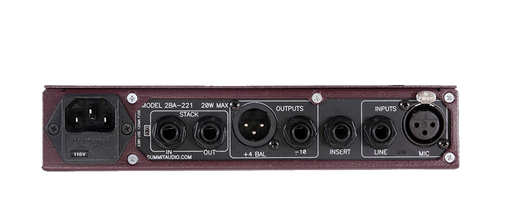

    Connections

    • Mic Input: +4 dB female XLR
    • Line Input: -10 dB 1/4" balanced
    • Outputs: +4 dB male XLR and 1/4" -10 dB balanced
    • Stacking Input/Output: -10 dB balanced
    • Max input level
    • Mic: -16dBu
    • Line: 22dBu
    • Hi-Z: 15dBu

    Operating Measurements

    • Max output level (XLR): 25dBu
    • Max gain: 75dB
    • Equivalent input noise: -135dB average 10Hz-20kHz
    • Frequency response: 10Hz- 50kHz (-1dB)
    • Signal to noise ratio: 115dB average 10Hz- 20kHz
    • THD + Noise: 0.055%, -32dB in +4dB out, 1 kHz
    • Vacuum tubes: 12AX7A

    Warranty: 3 year limited warranty

    • Height:
      1.75 inches (4.44 cm)
    • Width:
      8.5 inches (21.59 cm)
    • Depth:
      7.42 inches (21.59 cm)
    • Weight:
      7 pounds (3.15 kg)
